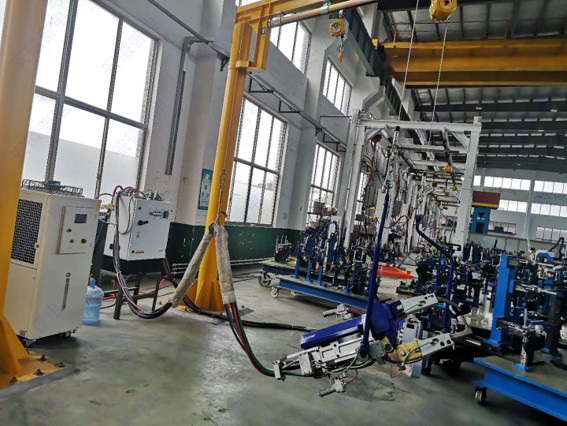

Manual aluminum spot welding is a kind of resistance welding, mainly used for welding of aluminum alloy, use of current through welding parts and nearby areas generated resistance heat as a heat source to locally heat workpiece, while pressurizing workpiece to form a metal bonding method. The structure of manual aluminum spot welding gun is roughly the same as that of the manual steel spot welding gun. It is that manual integrated welding gun is suspended under I-steel, and weight of welding gun is balanced by spring balancer. The worker holds welding gun by hand, slides around and forward through longitudinal and horizontal track, aligns position that needs to be connected, and then controller outputs relevant parameters through pipeline package to realize welding of workpiece. Compared with manual steel spot welding, it requires greater welding pressure, higher welding current, and shorter welding time, making design strength of welding gun higher and power of welding transformer greater.
It can realize modular design and maximize the interchangeability of parts
The output current of welding gun is large and welding time is short
Welding gun designed for high strength
welding gun with high impressed pressure
The electrode cap adopts a large curved end face

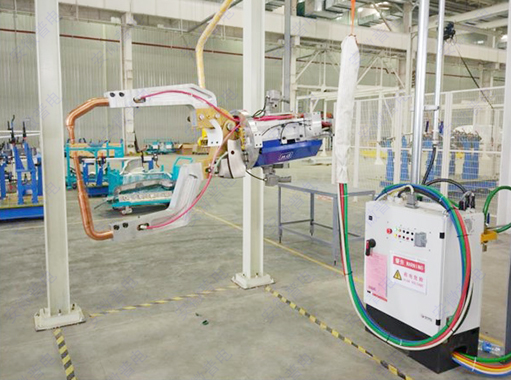

C type basic parameters
Weld pressure：MAX 5500N(air pressure0.6MPa)
Max. short-circuit current：42KA
Max. stroke：120/150/200mm
Transformer capacity：225KVA X=50%
Weld gun weight：about145KG(epend on size)
Weld gun water flow：≥15L/min
Electrode ca：φ19mm

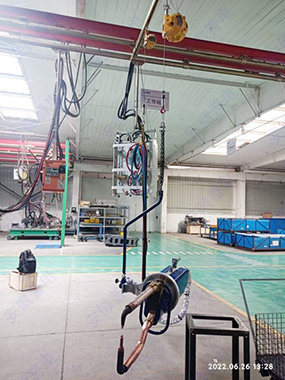

X type basic parameters
Weld pressure：≥4000N（depend on throat depth and width）
Max. short-circuit current：42KA (Gun throat depth>700mm，Max. short-circuit current is 39KA)
Max. stroke：14°opening
Transformer capacity：225KVA X=50%
Weld gun weight：about160KG(depend on size)
Weld gun water flow：≥15L/min
Electrode ca：φ19mm
