Fixed welding
Fixed welding

       The nut/screw conveyor is an automatic conveying nut/screw equipment, mainly composed of vibration disk, controller, distributor and conveying device. The vibrating disk vibrates, drives nut/screw to rotate inside it, and moves according to a certain track, selects nut/screw that meets standard in same order, enters conveying pipeline, and conveying device sends nut/screw to designated station to complete conveying process.

Characteristics and performance

Safety: It can replace manual nut/screw placement and completely avoid safety accidents caused by misoperation.

High efficiency: Through automatic transmission, automatic production can be realized, which greatly improves production efficiency.

Accuracy: Conveying accuracy > 99%

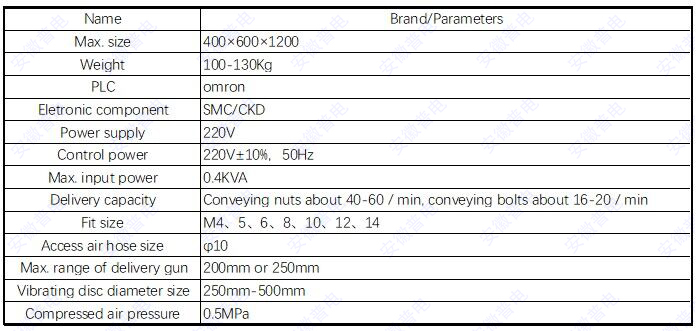

Technical Parameter


Classic Case
Application Scenario
